Number of wheels
4
Stud/rail assembly
Self-drilling screws
Amounts Section
78*47 mm
Type of lock
4 Keys
Compatible motorization type
sliding
Assembly time
8 h
Required pillar height
160 cm
Sleeper Section
77*30 mm
Blade width
--
Finishing
mast
Number of wheels
4
Stud/rail assembly
Self-drilling screws
Amounts Section
78*47 mm
Type of lock
4 Keys
Compatible motorization type
sliding
Assembly time
8 h
Required pillar height
160 cm
Sleeper Section
77*30 mm
Blade width
--
Finishing
mast
Operating clearance
26 mm
Length of the tail of the sliding gate
25.4 cm
RAL
7016
Warranty
2 an(s)
Recommended number of persons for assembly
2
Width
303 cm
Stud thickness
1.4 mm
Width between pillars
303 cm
Handle material
Aluminium
Eligibility Extended warranty 5 years
No
Opening system
Sliding
Thickness of the blades
1.2 mm
Required discharge length
3 m
Sleeper thickness
2 mm
Assembly instructions
Yes
Height
145 cm
Length of steel rail
6 m
Locking system
Barrel lock
Supplied accessories
Yes
Opening direction
left to right/right to left
Pattern / Design
SANTIS
Guide system
Upper guide with 4 nylon olives
Compatible engines
Yes
Exists by beating
Yes
Handle colour
Black
Eligibility Extension of warranty 10 years
No
Type of filling
half openworked
Main material
Aluminium
Colour
Charcoal grey
Rod assembly
Self-drilling screws
Frame material
Aluminium
Wind resistance
55 km/h
Weight of package No.1
19.0 kg
Weight of package No.2
19.0 kg
Weight of package No.3
25.0 kg
Weight of package No.4
4.88 kg
The SANTIS Driveway sliding gate, with its simple and classic design is the perfect compromise between openwork and fully boarded sliding gate.
This vertical mixed infill model will allow you to reconcile luminosity and privacy by means of a barred opening in the upper part and a shading in the lower part.
Description : Sliding gate with mixed infill, Vertical Board with Straight Top & Vertical Open Pales
Material : Aluminium
Colour : Anthracite grey (RAL 7016)
Dimensions : Width 303cm x Height 145cm
Required width with clearance : 657cm
Minimum height of pillars : 160cm
Inspired and designed in France
This Sliding Gate with mixed infill kit, to be assembled and installed by yourself, contains :
- 16 aluminium bars (Width 7.8cm)
- 18 powder-coated aluminium slats (Width 15.5cm)
- 1 top guide with 4 nylon wheels
- 6m aluminium guide rail
- 4 steel wheels
- 1 closes strike box
- 1 limit stop
- 1 cylinder lock
- 1 handle (Colour Black)
- 5 keys
- Finishing caps
- Screws and bolts

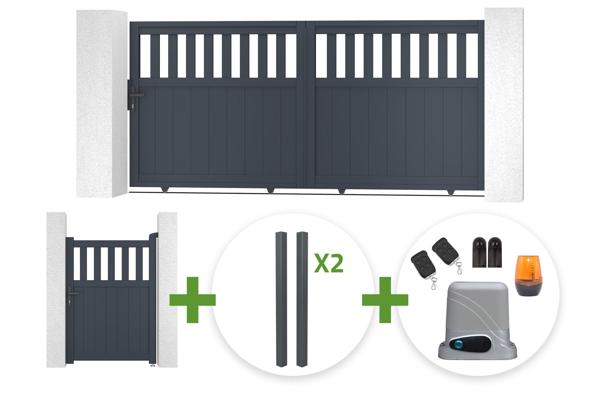

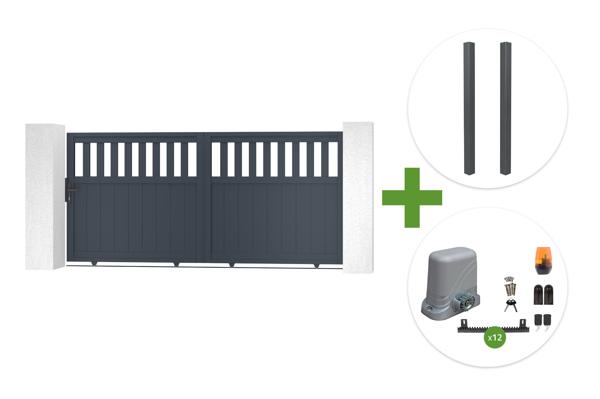

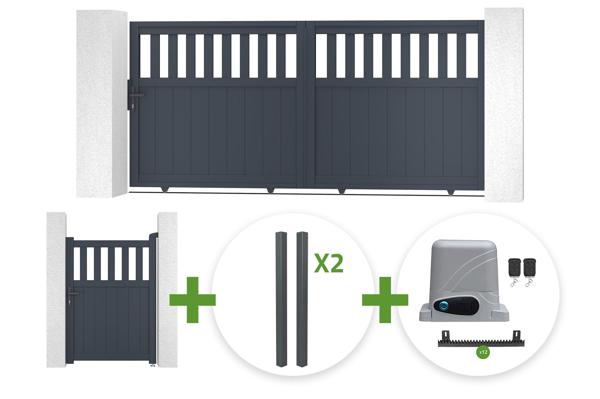

If you want an automatic sliding gate, you will find promotional packages consisting of a sliding gate of your choice with the appropriate sliding gate automation.

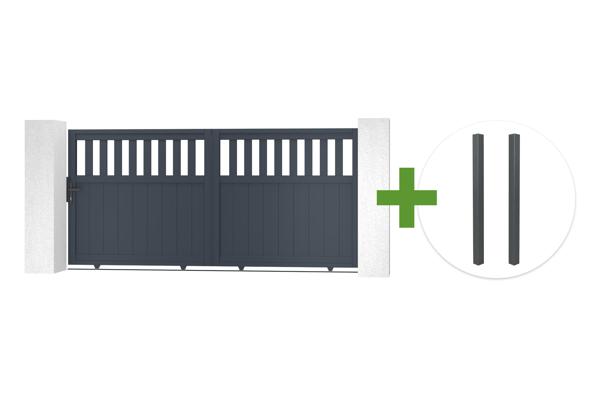

If your installation requires pillars, Casanoov offers promotional packages in the "Sliding Gate" category
These packages contain one Aluminium sliding gate of your choice, together with two aluminium posts to match the chosen dual sliding gate.
The SANTIS model is also available in other sizes.

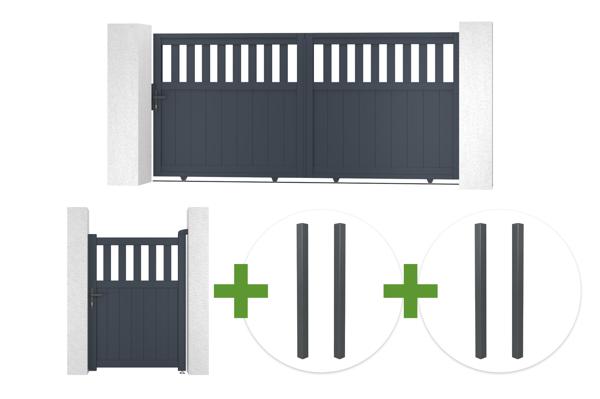

Also available as a pedestrian or double swing gate
Driveway Gate delivered in kit form
Clear instructions, quick and easy assembly
You will find all the necessary information about this product in the technical data
It is technically possible to install your gate with an opening from the right to the left.
You will find all the information you need to change the opening direction in our installation instructions.
Our installation instructions for sliding gates have been designed to offer you two different installation methods depending on the chosen opening direction: from left to right or from right to left.
For further information, please contact our customer service via our contact form.
