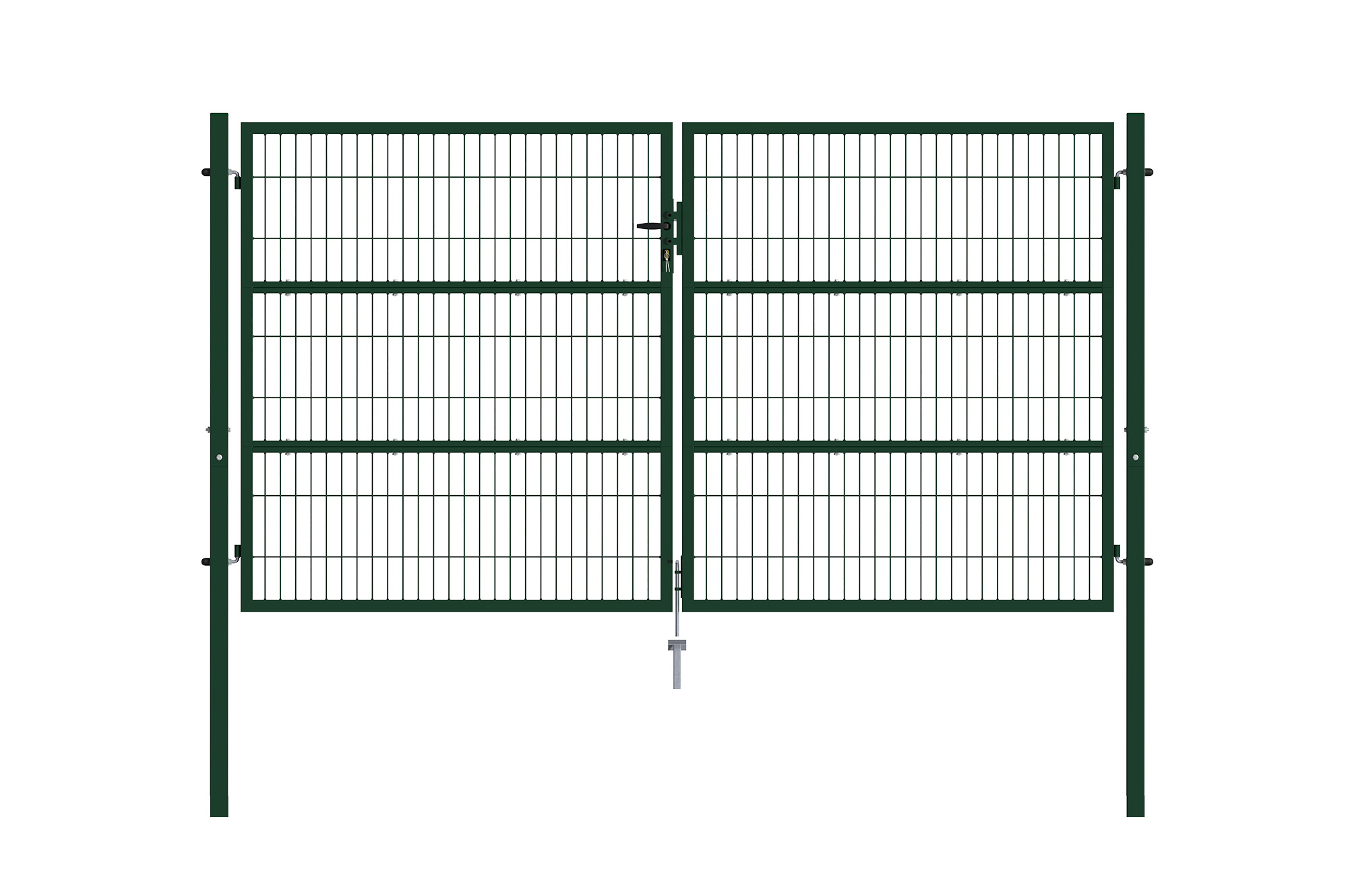

Mesh gate 3m RAZO H.160cm green main_image thumbnail
Mesh gate 3m RAZO H.160cm green thumbnail 1
Mesh gate 3m RAZO H.160cm green thumbnail 2
Mesh gate 3m RAZO H.160cm green thumbnail 3
Mesh gate 3m RAZO H.160cm green thumbnail 4
Mesh gate 3m RAZO H.160cm green thumbnail 5
Mesh gate 3m RAZO H.160cm green thumbnail 6
Mesh gate 3m RAZO H.160cm green thumbnail 7
Mesh gate 3m RAZO H.160cm green thumbnail 8
Mesh gate 3m RAZO H.160cm green thumbnail 9
Mesh gate 3m RAZO H.160cm green thumbnail 10
Mesh gate 3m RAZO H.160cm green thumbnail 11
Mesh gate 3m RAZO H.160cm green thumbnail 12
Mesh gate 3m RAZO H.160cm green thumbnail 13
Mesh gate 3m RAZO H.160cm green thumbnail 14
Mesh gate 3m RAZO H.160cm green main_image
Mesh gate 3m RAZO H.160cm green 1
Mesh gate 3m RAZO H.160cm green 2
Mesh gate 3m RAZO H.160cm green 3
Mesh gate 3m RAZO H.160cm green 4
Mesh gate 3m RAZO H.160cm green 5
Mesh gate 3m RAZO H.160cm green 6
Mesh gate 3m RAZO H.160cm green 7
Mesh gate 3m RAZO H.160cm green 8
Mesh gate 3m RAZO H.160cm green 9
Mesh gate 3m RAZO H.160cm green 10
Mesh gate 3m RAZO H.160cm green 11
Mesh gate 3m RAZO H.160cm green 12
Mesh gate 3m RAZO H.160cm green 13
Mesh gate 3m RAZO H.160cm green 14

Mesh gate 3m RAZO H.160cm green

SKU : KIT-000354
Log in to access business rates
Create account ➜

  • Width: 306cm and Height: 166 cm
  • Material : Galvanized steel
  • Color : moss green (RAL 6005)
  • Square frames and posts

Guarantee: 2 years

In stock


Technical data

  • Barrel material

    Copper

  • Stud thickness

    1,3 mm

  • Post diameter

    --

  • Post thickness

    1,8 mm

  • Compatible engines

    No

  • RAL

    6005

  • End stop

    --

  • Assembly time

    2 h

  • Pattern / Design

    --

  • Rod assembly

    Welding

  • Barrel material

    Copper

  • Stud thickness

    1,3 mm

  • Post diameter

    --

  • Post thickness

    1,8 mm

  • Compatible engines

    No

  • RAL

    6005

  • End stop

    --

  • Assembly time

    2 h

  • Pattern / Design

    --

  • Rod assembly

    Welding

  • Type of keys

    standard key

  • Column section

    60x60 mm

  • Compatible pillar spacing

    305 - 312 cm

  • Usable post height

    166 cm

  • Assembly instructions

    Yes

  • Available in sliding

    No

  • Central stop

    Yes

  • Top cover cap

    Yes

  • Sleeper thickness

    1,3 mm

  • Width

    306 cm

  • Section of the mesh

    50*200*5 mm

  • Sleeper Section

    40x40 mm

  • Pivoting system

    Hinge

  • Type of lock

    Keys (3)

  • Handle material

    Aluminium

  • Supplied accessories

    Yes

  • Recommended number of persons for assembly

    2

  • Amounts Section

    40x40 mm

  • Total post height

    230 cm

  • Posts included

    Yes

  • Number of lower hinges

    2

  • Number of upper hinges

    2

  • Minimum pillar height

    166 cm

  • Colour

    Green

  • Hinge material

    Stainless steel

  • Stud/rail assembly

    Self-drilling screws

  • frame section

    40x40x1,3 mm

  • Opening direction

    Choice of inside or outside

  • Locking system

    Cylinder lock

  • Mesh size

    50x200 mm

  • Width between pillars

    294 cm

  • Height

    166 cm

  • Material of the lock

    Galvanized steel

  • Wire wrap

    Powder coating

  • Main material

    Galvanized steel

  • Type of filling

    Wire mesh

  • Opening system

    Swing gate

  • pole type

    Sealing

  • Operating clearance

    -10 / +60 mm

  • Finishing

    Powder coating

  • Wire diameter

    5 mm

  • Handle colour

    Gray

  • Weight of package No.1

    24.31 kg

  • Weight of package No.2

    24.31 kg

  • Weight of package No.3

    17.97 kg

Description

  • Width: 306cm and Height: 166 cm
  • Material : Galvanized steel
  • Color : moss green (RAL 6005)
  • Square frames and posts

Need a wire mesh gate that offers stability and security? Discover the RAZO range.

The RAZO wire mesh gate offers a robust and durable solution with its steel mesh design. Perfect for demarcating spaces while maintaining maximum visibility, this collection is ideal for those looking for a functional and durable barrier. The square posts guarantee optimal stability, bringing security and strength to your outdoor space.

Wire mesh gate: durable and maintenance-free

Wire mesh gates are impressive for their ease of use and longevity. Made of galvanized steel, they are perfectly weather-resistant and require very little maintenance. Thanks to their double-leaf opening, they are suitable for both pedestrian and vehicle traffic, while remaining an economical and reliable option for protecting your property.

Description: Double-leaf gate with rigid mesh and square posts
Material: Galvanized steel
Color: Moss Green - RAL 6005
Overall dimensions: Width 306 cm x Height 230 cm
Gate dimensions: Width 285 cm x Height 160 cm
Mesh section: 50x200 mm (LxH) - Wire diameter 5 mm
Post dimensions: 60x60x2 mm
Total post height: 230 cm
Post embedment depth: between 41 cm and 44 cm

This kit contains:
- 6 welded mesh frames (40x40mm)
- 2 square posts (60x60mm, height 230cm)
- 4 adjustable stainless steel hinges
- 1 latch
- 1 bayonet lock for swing gates
- 1 barrel lock
- 1 aluminum handle
- 3 keys
- Finishing caps
- Screws

About the Material

Steel stands out for its ability to adapt to a wide variety of environments while offering excellent durability. Treated to resist corrosion and weathering, it maintains its performance even after years of exposure. It requires minimal maintenance, making it a practical and reliable material. With steel, you're choosing an option designed to last, without compromising on efficiency.

How to maintain your steel structure?

Galvanized steel is durable, but regular maintenance extends its lifespan. Once or twice a year, clean it with soapy water and a soft sponge, then rinse and dry thoroughly. Avoid corrosive products and high-pressure cleaning.

Need help with your choice?
Contact our customer service via our online form.

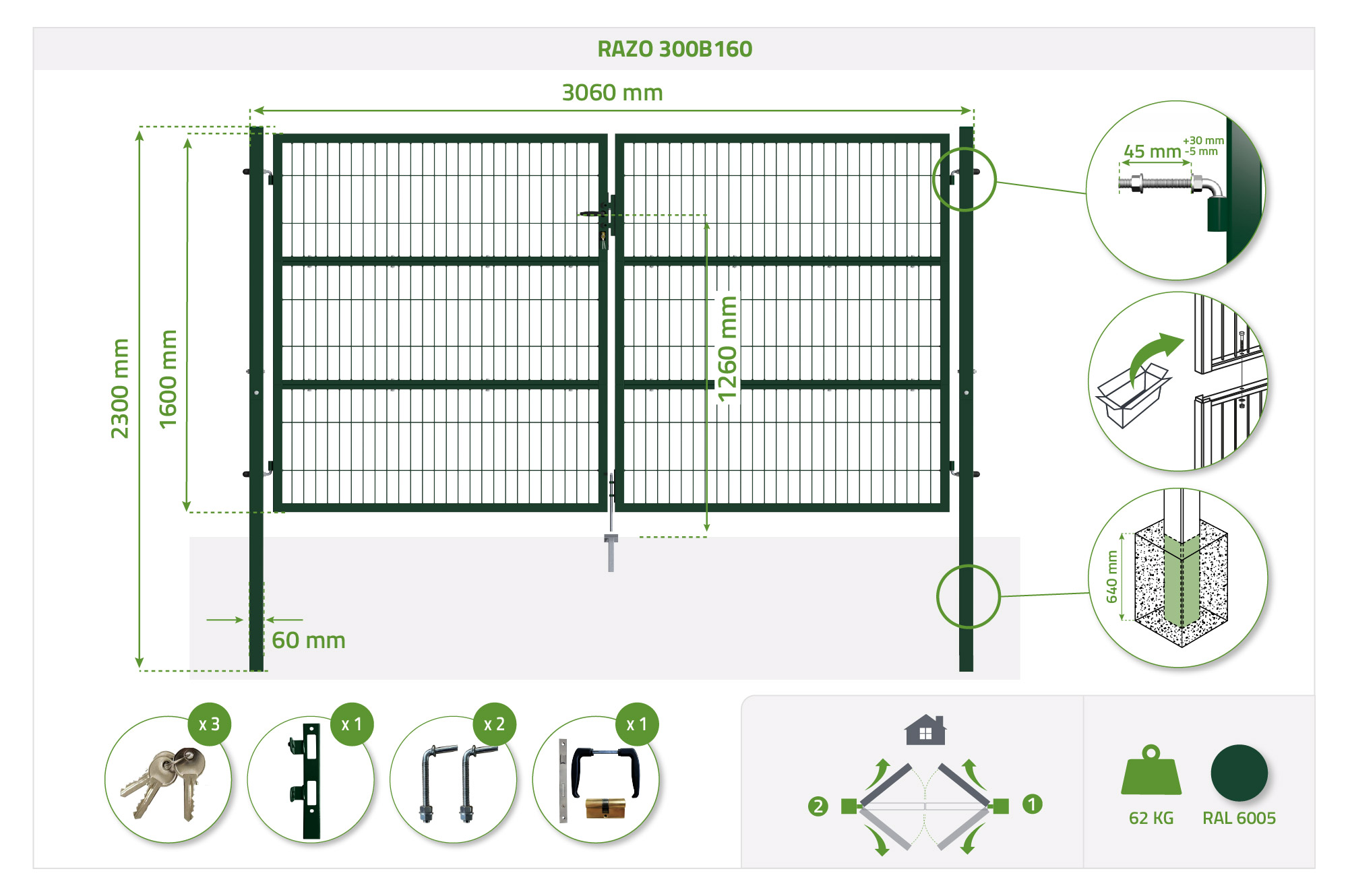

Technical diagram
