- Width: 306cm and Height: 166 cm
- Material : Galvanized steel
- Color : grey anthracite (RAL 7016)
- Square frames and posts
Mesh gate 3m RAZO H.160cm grey
KIT-000353
3119.20 kr excl. VAT
Guarantee: 2 years
- Width: 306cm and Height: 166 cm
- Material : Galvanized steel
- Color : grey anthracite (RAL 7016)
- Square frames and posts
Secure payment
Delivery within 5 days
Free shipping
Mesh gate 3m RAZO H.160cm grey
3119.20 kr
Description
Need a wire mesh gate that offers stability and security? Discover the RAZO range.
The RAZO wire mesh gate offers a robust and durable solution with its steel mesh design. Perfect for demarcating spaces while maintaining maximum visibility, this collection is ideal for those looking for a functional and durable barrier. The square posts guarantee optimal stability, bringing security and strength to your outdoor space.
Wire Mesh Gate: Robustness and Transparency

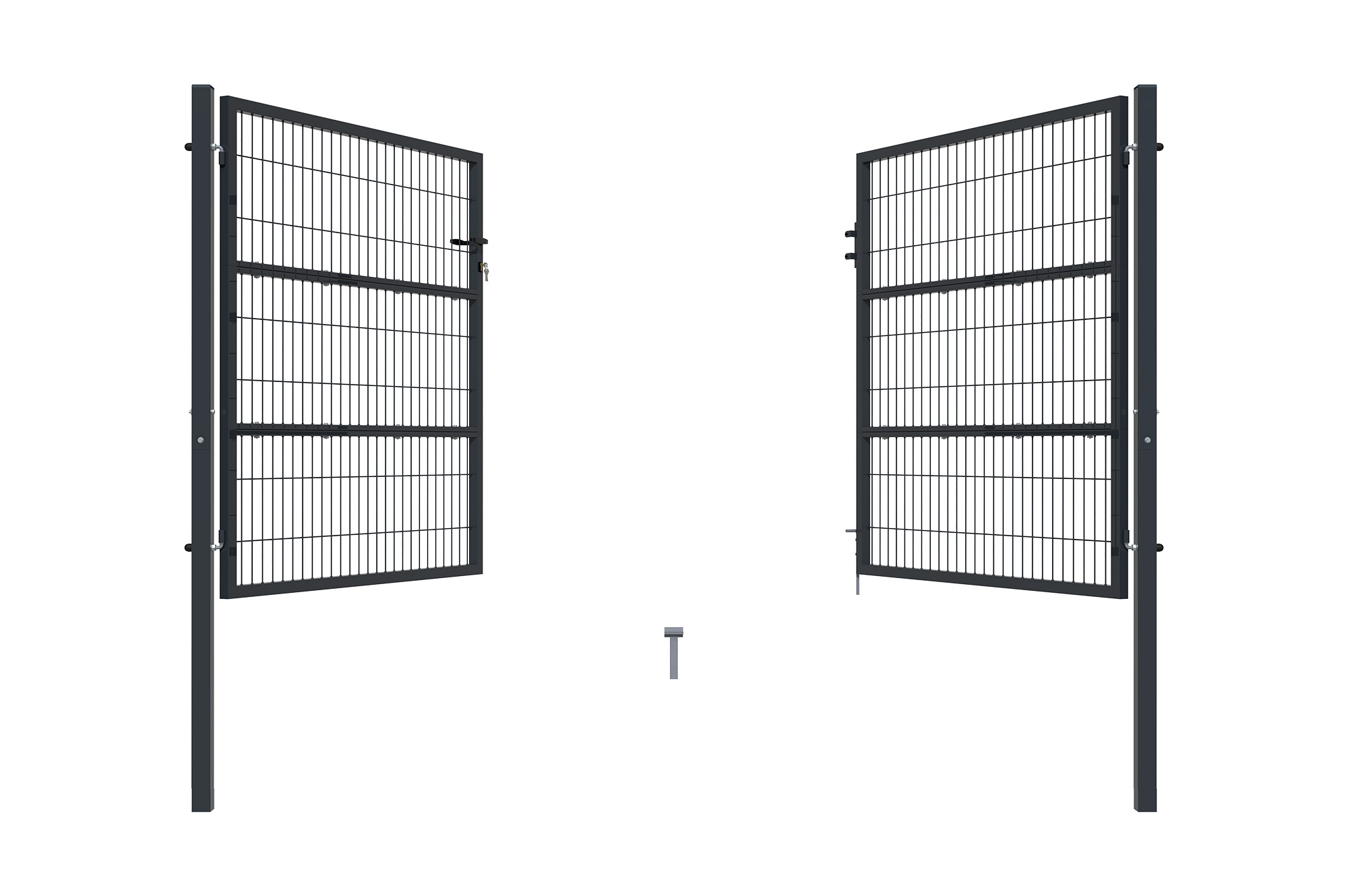

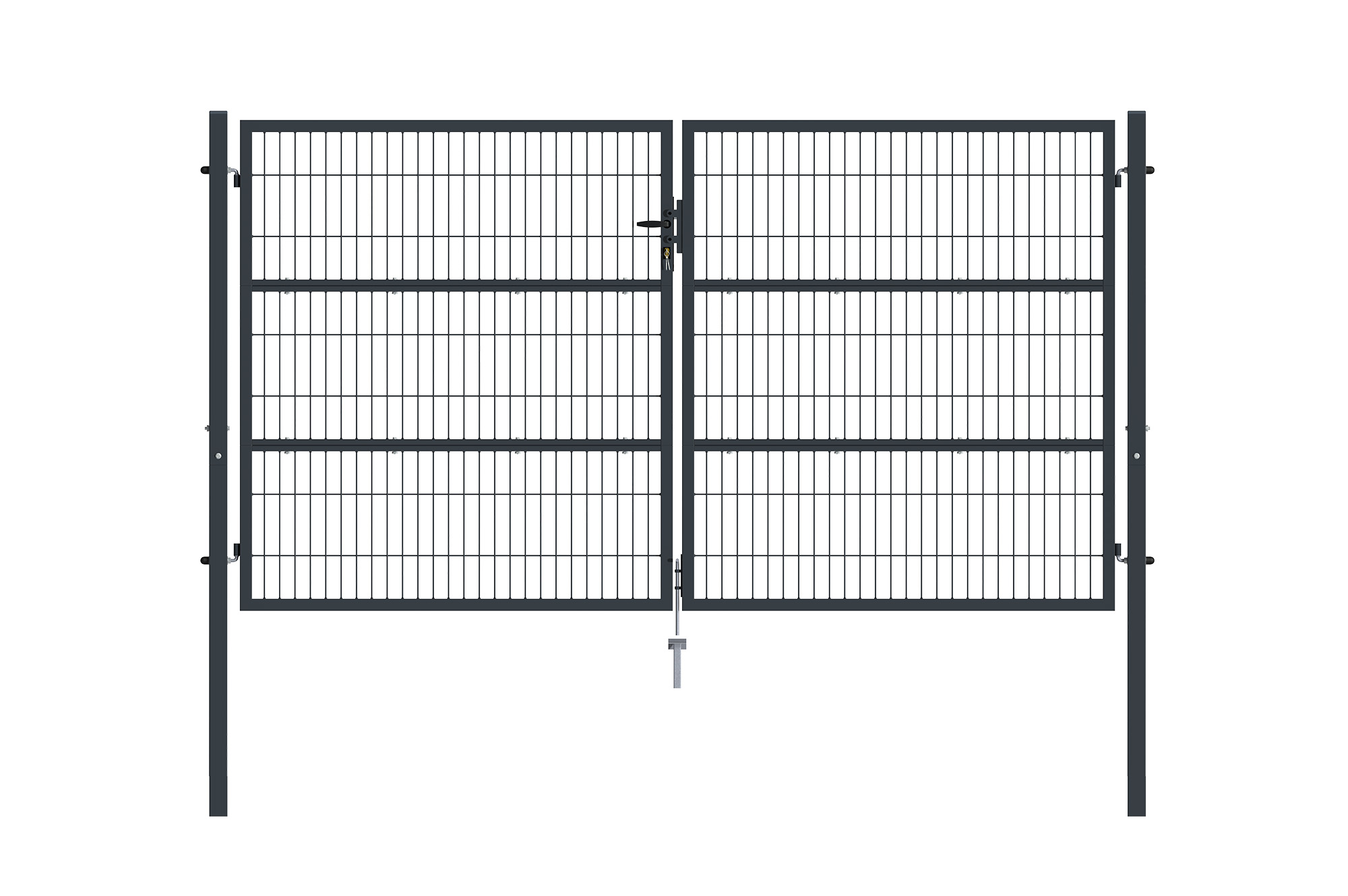

Composed of two leaves, the rigid wire mesh gate combines strength and lightness. It guarantees quick and easy access while securing the entrance to your property. Its mesh allows for a clear view of your exterior, for a discreet and functional look. A smart choice that combines security, practicality, and simplicity.
Description: Double-leaf gate with rigid mesh and square posts
Material: Galvanized steel
Color: Anthracite gray - RAL 7016

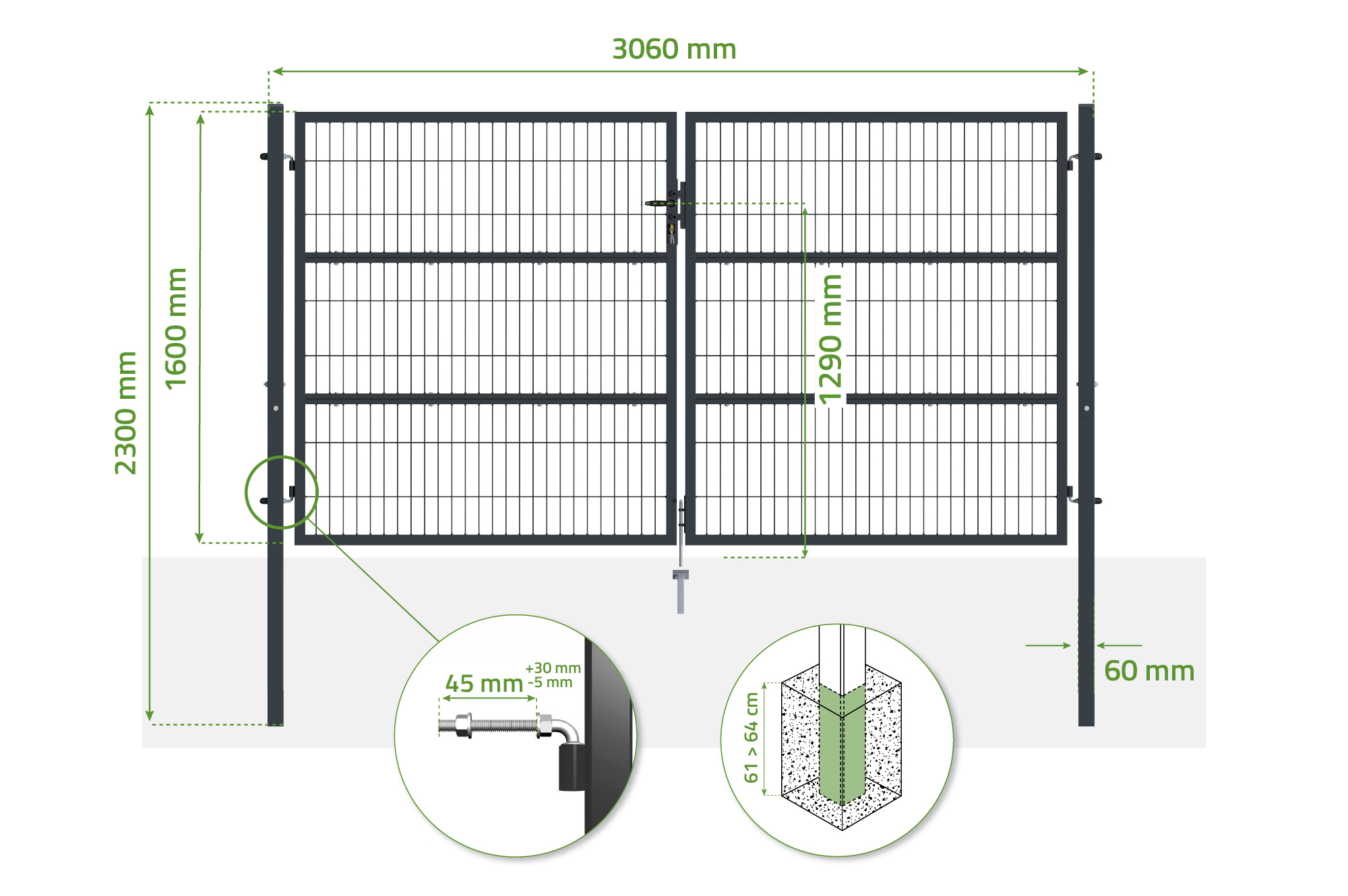

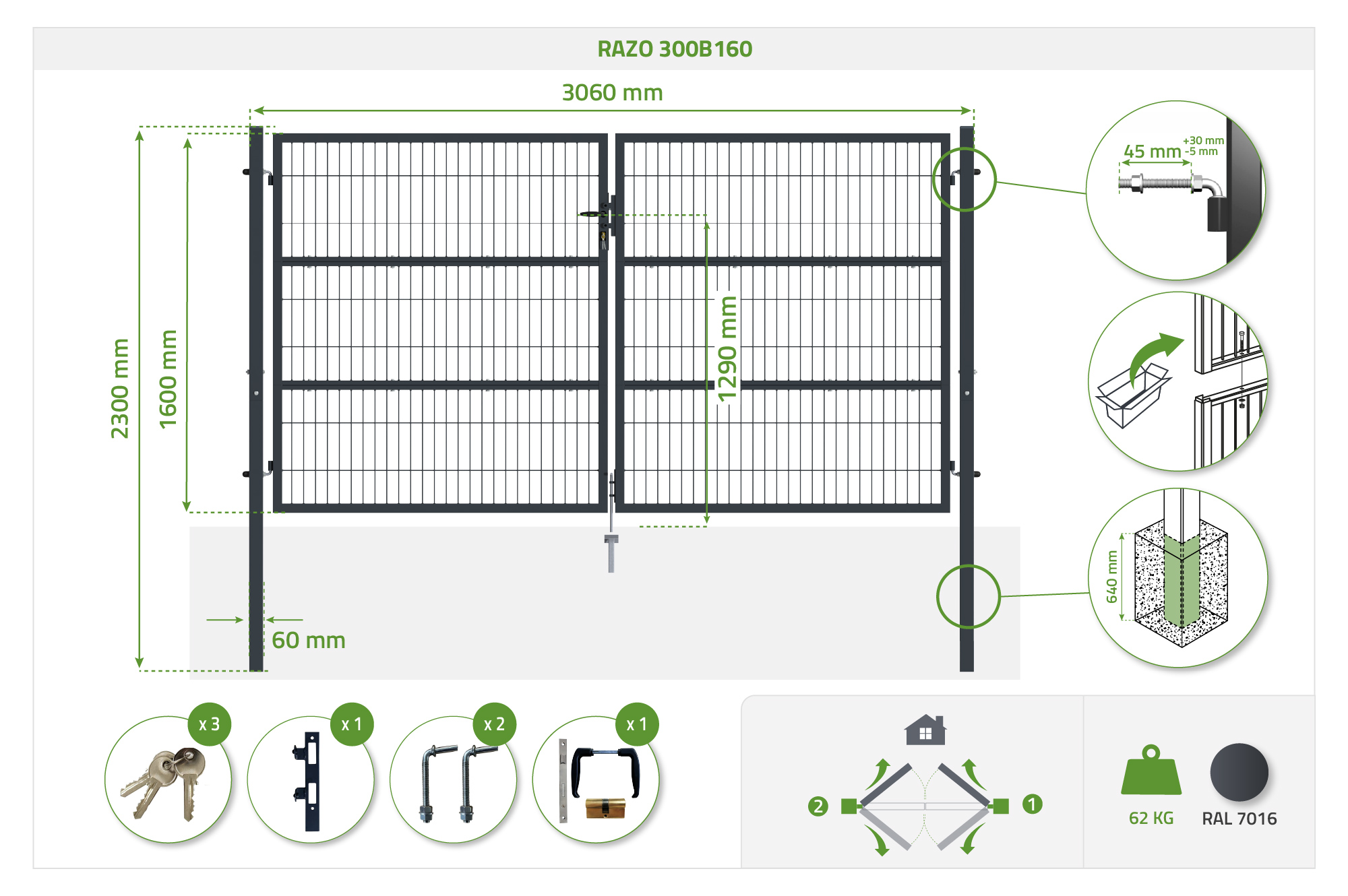

Overall dimensions: Width 306 cm x Height 230 cm
Gate dimensions: Width 285 cm x Height 160 cm

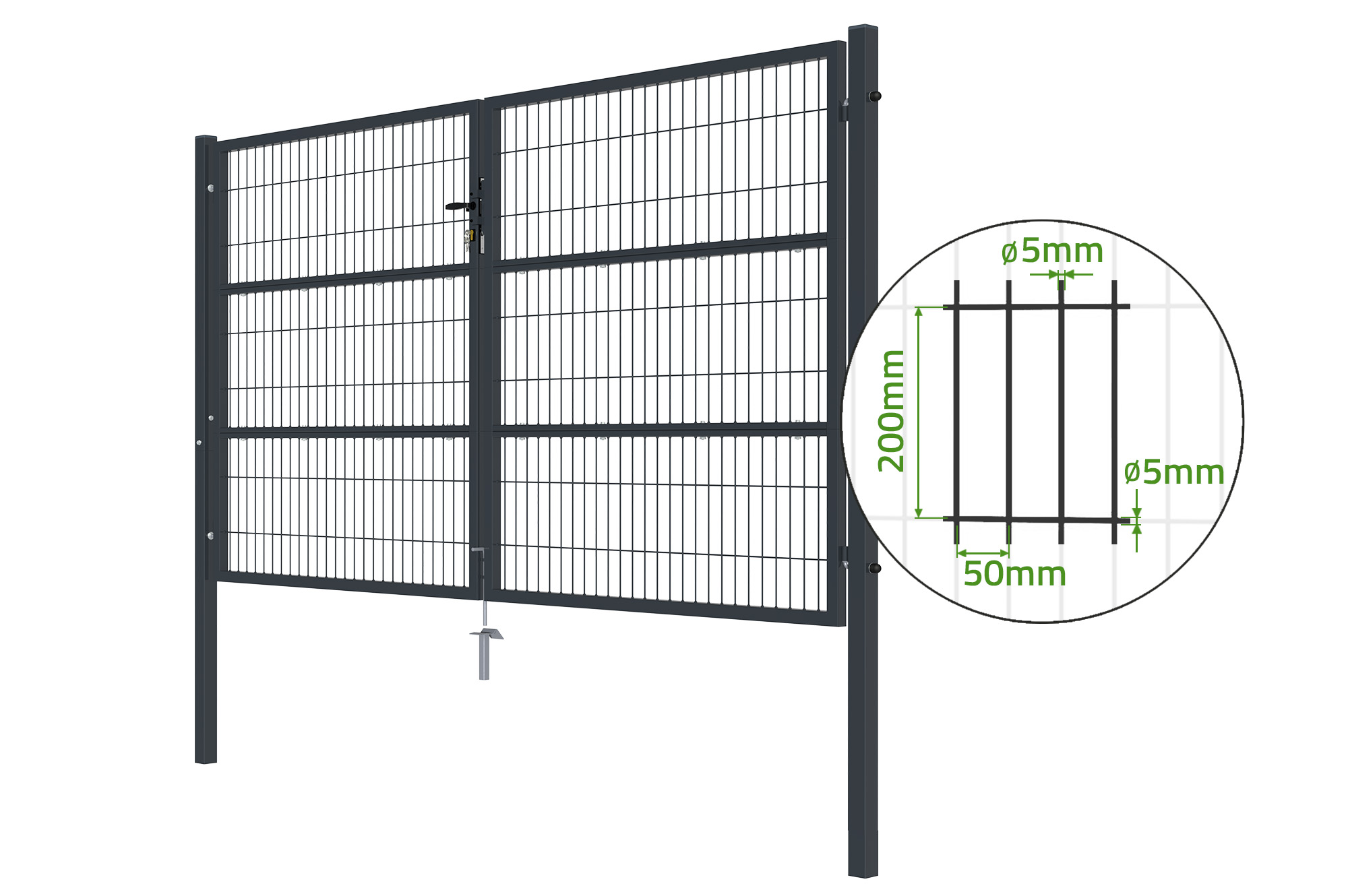

Mesh section: 50x200 mm (LxH) - Wire diameter 5 mm
Post dimensions: 60x60x2 mm
Total post height: 230 cm

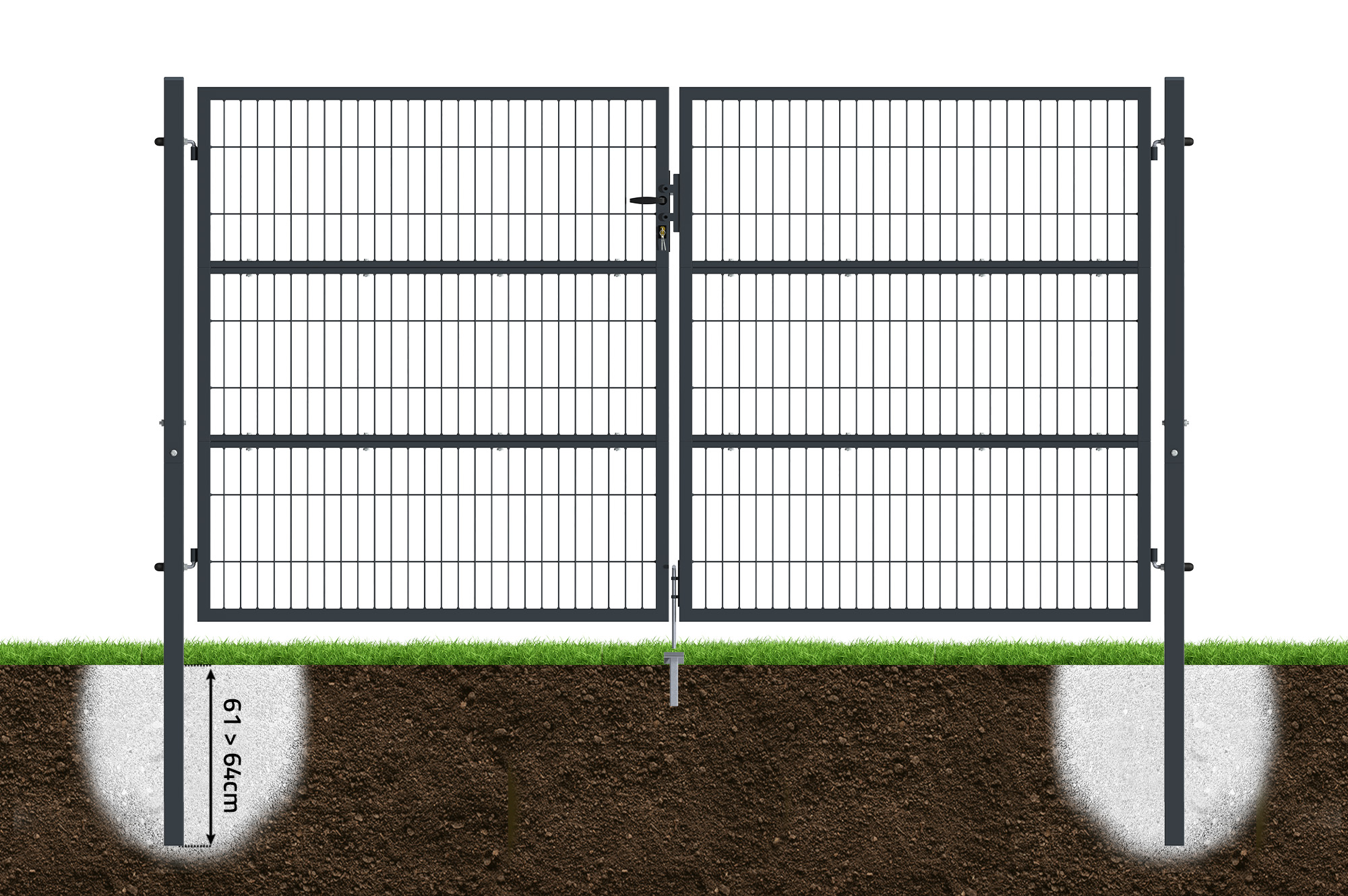

Post embedment depth: between 41 cm and 44 cm
- 6 welded mesh frames (40x40mm)
- 2 square posts (60x60mm, height 230cm)

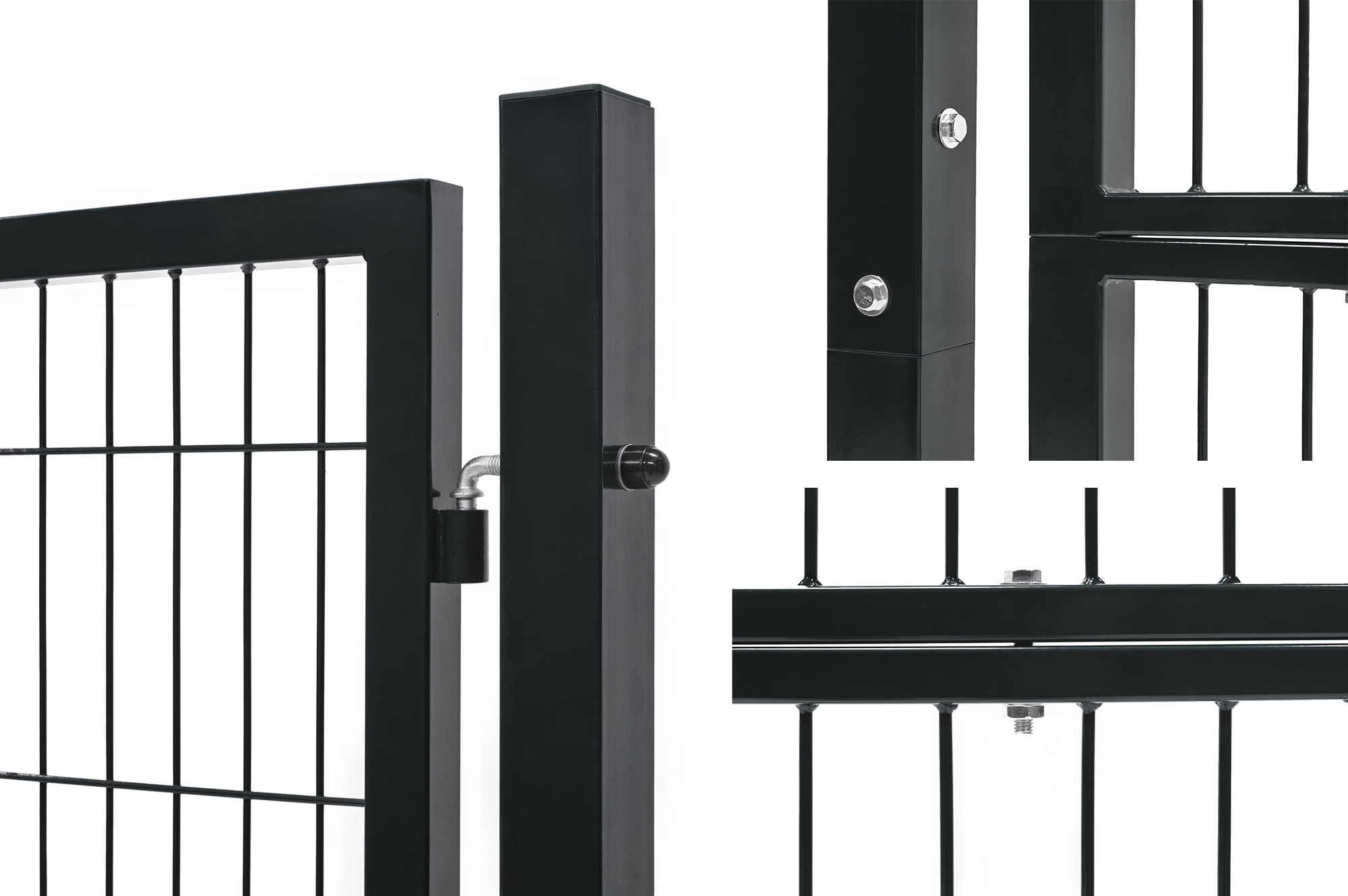

- 4 adjustable stainless steel hinges
- 1 latch

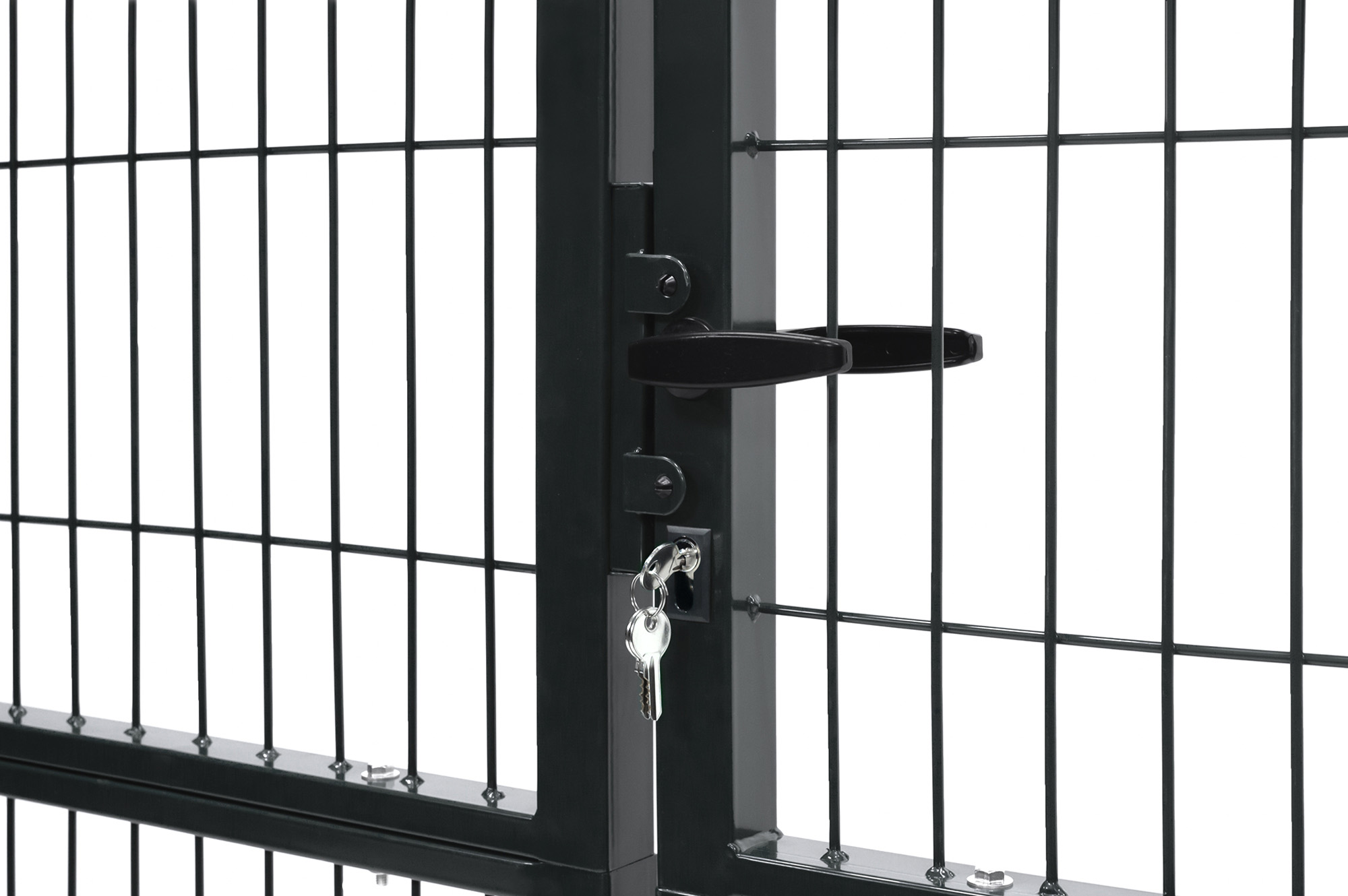

- 1 bayonet lock for swing gates
- 1 barrel lock
- 1 aluminum handle
- 3 keys
- Finishing caps
- Screws
About the Material
With its raw appearance, steel brings a touch of modernity and character to your exterior. Easy to combine with other materials, it adapts equally well to industrial decors as well as more classic styles. Thanks to its varied finishes, steel becomes an aesthetic choice that enhances your outdoor spaces.
How to care for your steel product?
Highly durable, galvanized steel requires little maintenance. Simply clean it once or twice a year with soapy water and a soft cloth, then rinse and dry thoroughly. Avoid corrosive products and high-pressure cleaning.
Need help with your choice?
Contact our customer service via our online form.
Product delivered in kit form
Clear instructions
Quick and easy assembly
Find all the necessary information about this product in the Technical specifications
Download the instructionsAssembly instructions
Technical data
-
Total post height
230 cm
-
Usable post height
166 cm
-
Height
166 cm
-
Rod assembly
Welding
-
Pivoting system
Hinge
-
Top cover cap
Yes
-
RAL
7016
-
Assembly time
2 h
-
Supplied accessories
Yes
-
Finishing
Powder coating
-
Section of the mesh
50*200*5 mm
-
frame section
40x40x1,3 mm
-
Stud/rail assembly
Self-drilling screws
-
Column section
60x60 mm
-
Type of keys
standard key
-
Stud thickness
1,3 mm
-
Barrel material
Copper
-
Assembly instructions
Yes
-
Operating clearance
-10 / +60 mm
-
Width
306 cm
-
Sleeper Section
40x40 mm
-
Amounts Section
40x40 mm
-
Minimum pillar height
166 cm
-
Handle colour
Gray
-
Wire diameter
5 mm
-
Type of lock
Keys (3)
-
Locking system
Cylinder lock
-
Opening direction
Choice of inside or outside
-
Width between pillars
294 cm
-
Number of lower hinges
2
-
Posts included
Yes
-
Compatible pillar spacing
305 - 312 cm
-
Sleeper thickness
1,3 mm
-
Mesh size
50x200 mm
-
Post thickness
1,8 mm
-
Hinge material
Stainless steel
-
Colour
Gray
-
Main material
Galvanized steel
-
Wire wrap
Powder coating
-
Type of filling
Wire mesh
-
pole type
Sealing
-
Recommended number of persons for assembly
2
-
Number of upper hinges
2
-
Central stop
Yes
-
Handle material
Aluminium
-
Compatible engines
No
-
Available in sliding
No
-
Opening system
Swing gate
-
Material of the lock
Galvanized steel
